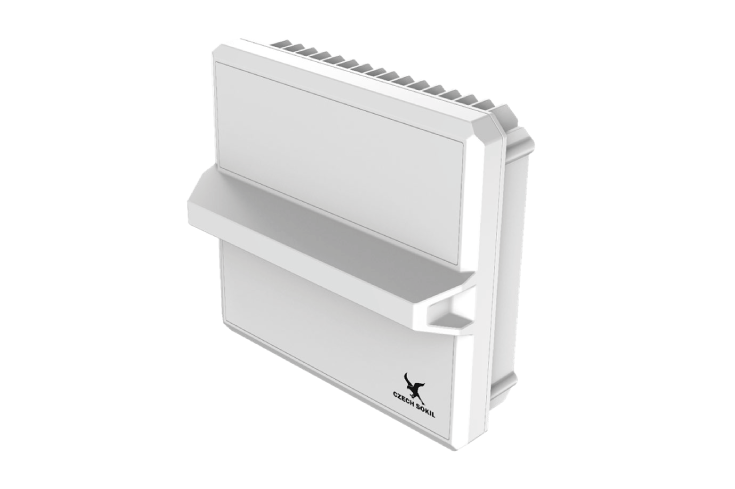

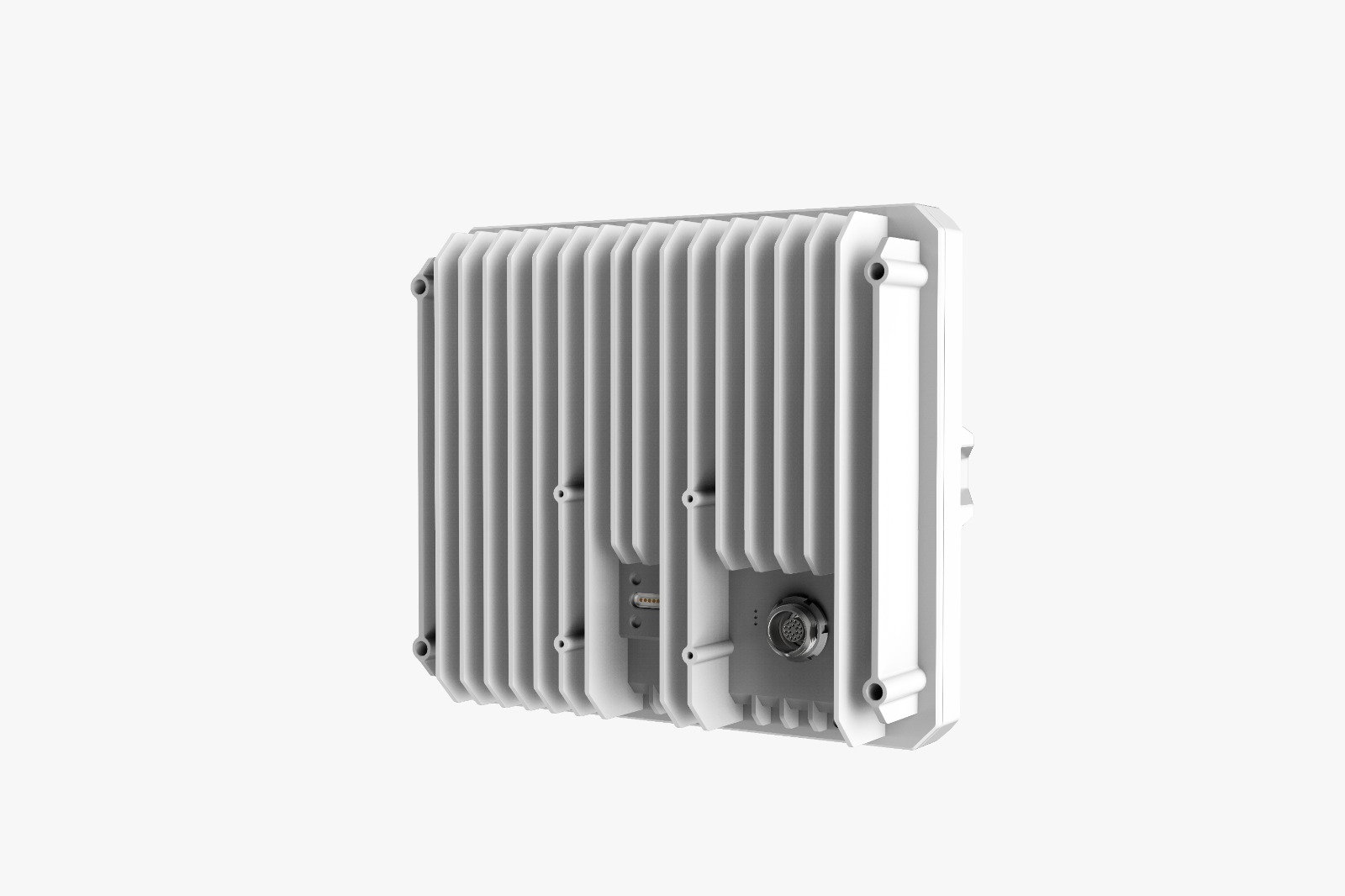

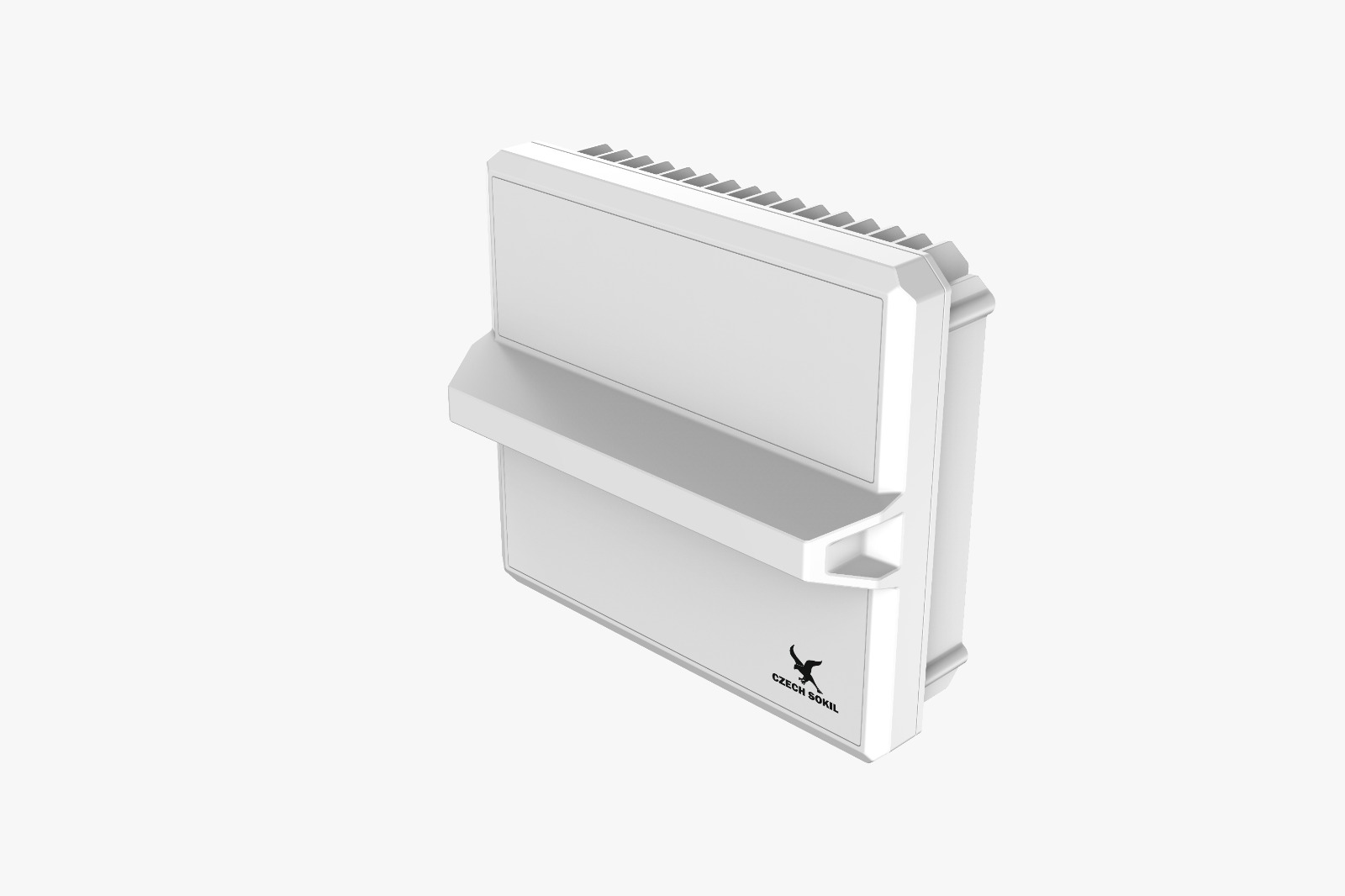

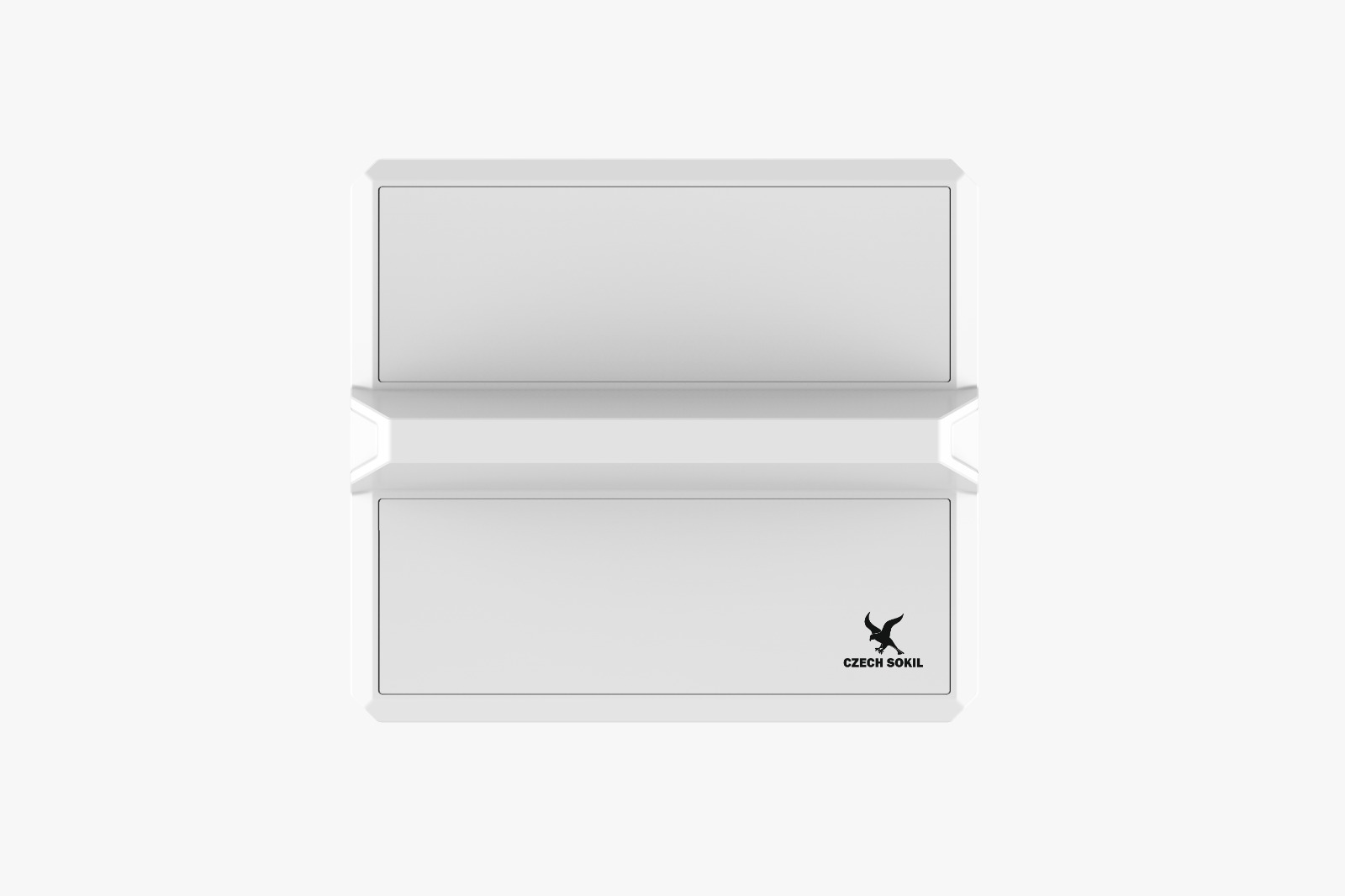

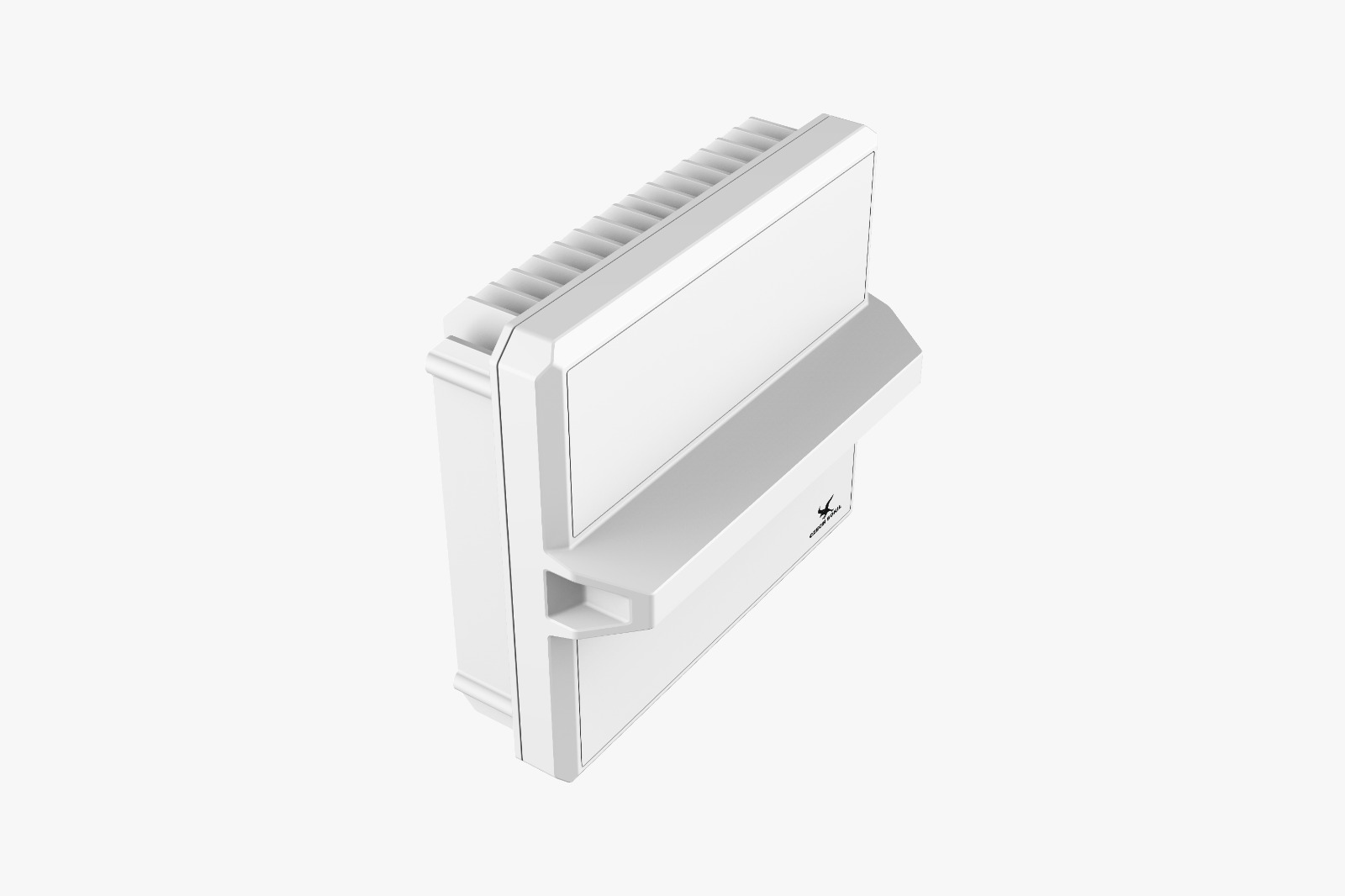

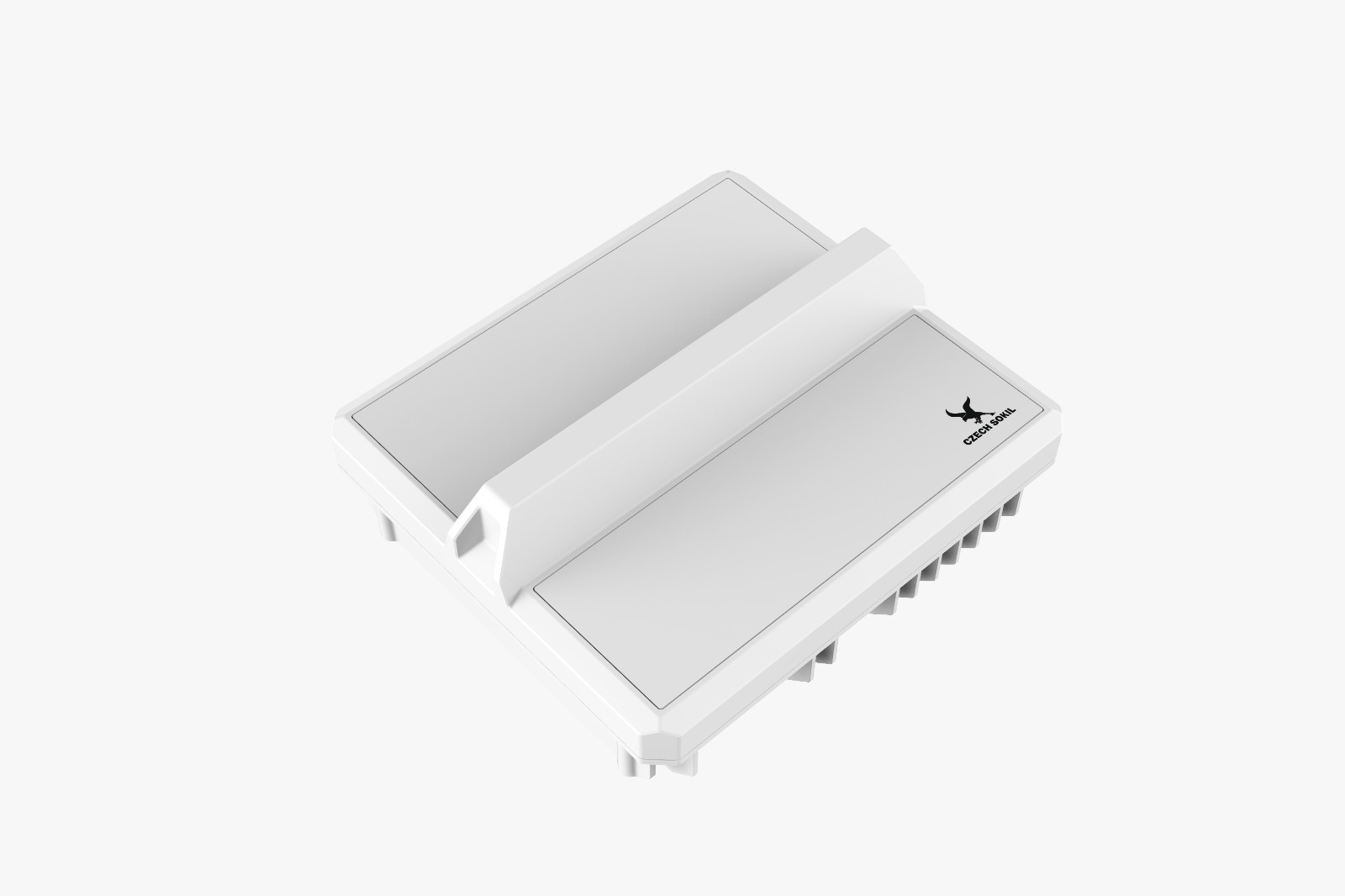

Czech Sokil RT01 Low-Altitude Detection Radar
Compact low-altitude radar for rapid deployment and reliable UAV detection. Provides 120° coverage with real-time tracking and seamless C2 integration in multi-sensor systems.
Key Features
- Early detection and tracking of low-altitude UAVs in the close protection zone
- Compact low-SWaP radar for rapid deployment
- 24/7 operation in harsh weather conditions with interference filtering and IP65 protection
- Network-enabled operation, scalable coverage in multi-sensor architectures
- Integration into the C2 loop via Ethernet and Sapient protocol
Specifications
Radar Type: 2D AESA FMCW, K-band 24.05–24.25 GHzDetection range: FPV/DJI-class UAVs with RCS 0.01 m² — up to 1.2 km; Up to 1.1 km for micro quadrotor UAVs
Field of view: 120° azimuth / 60° elevation, software configurable
Target height determination: provides display of the height of the detected target
Target tracking: up to 10 targets
Target detection: up to 200 simultaneous targets, update rate 100 ms
Accuracy: 10 m (range), 0.6 m/s (velocity), 2° (azimuth)
Transmit power: 7 W Power consumption: 130 W
Weight: 3 kg
