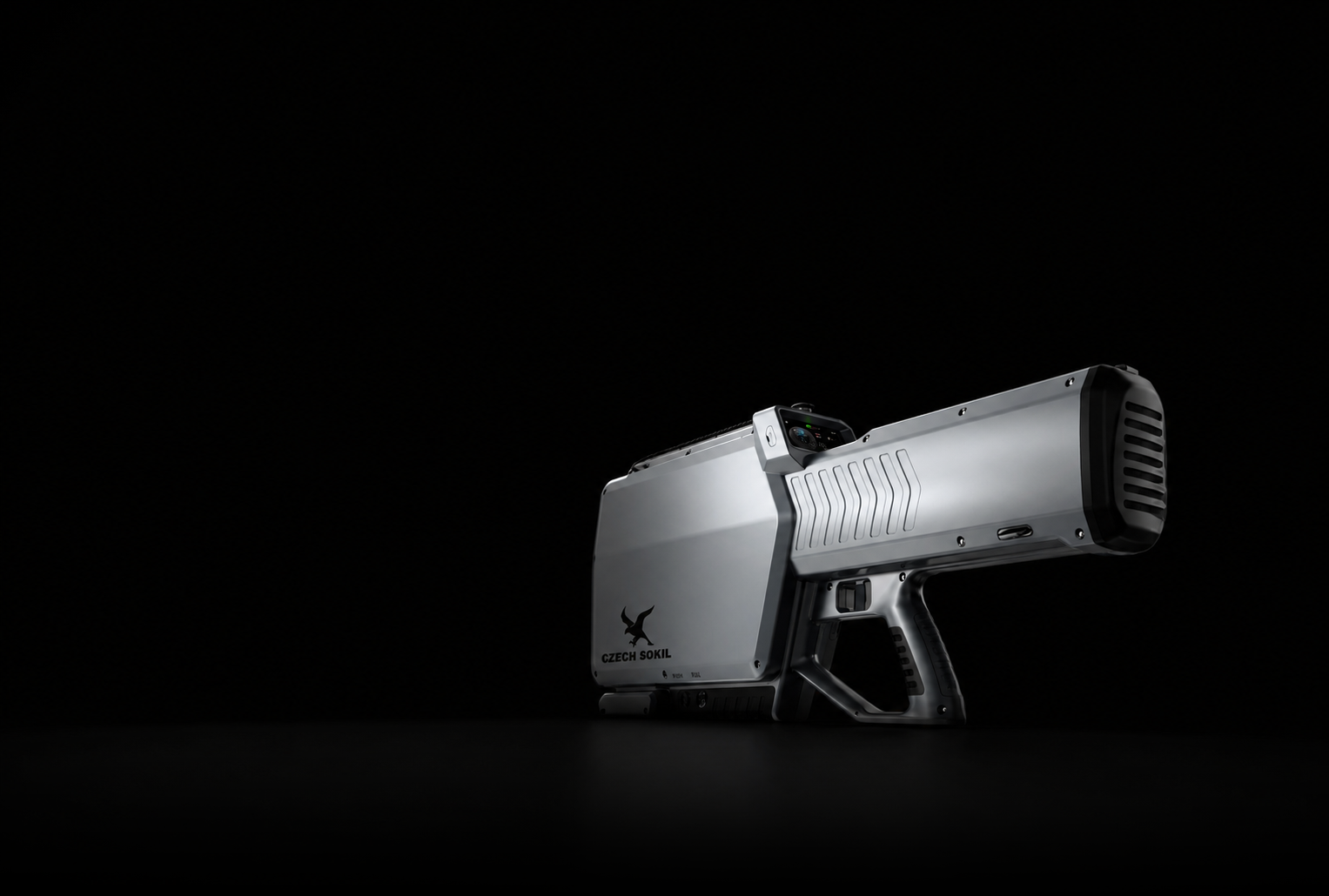

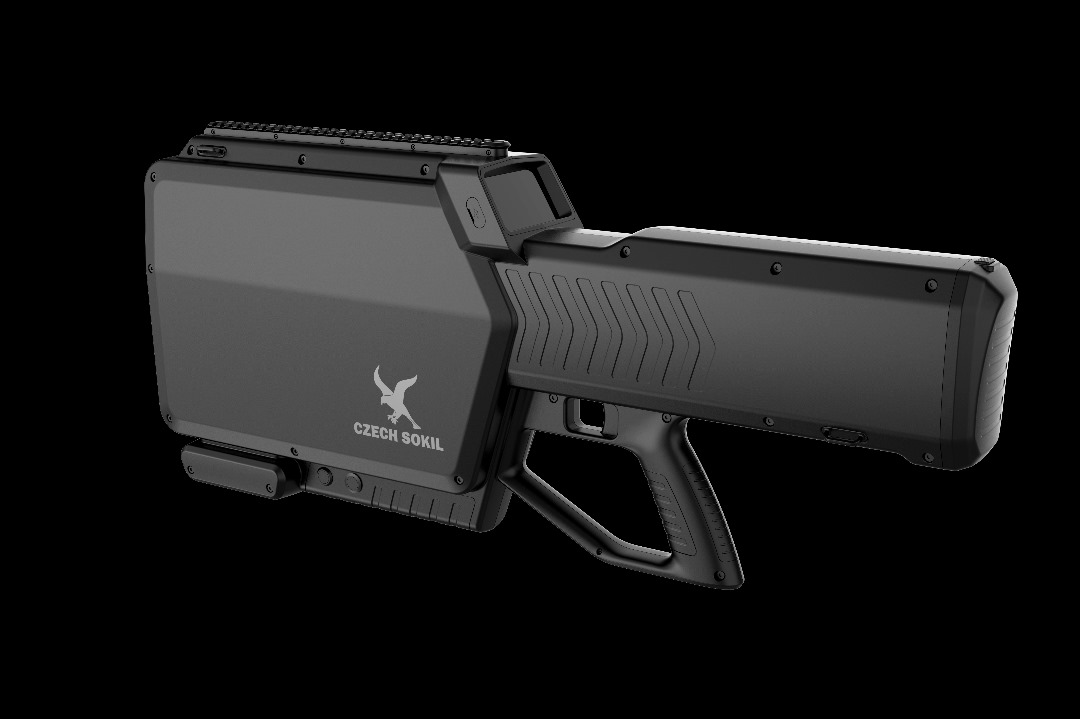

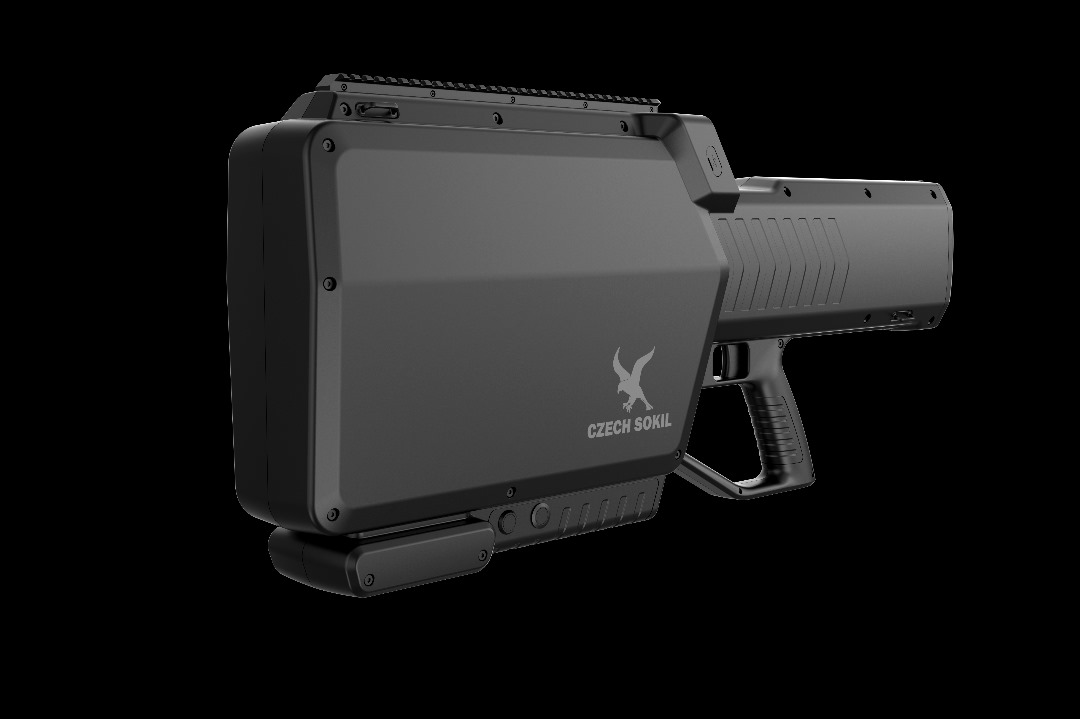

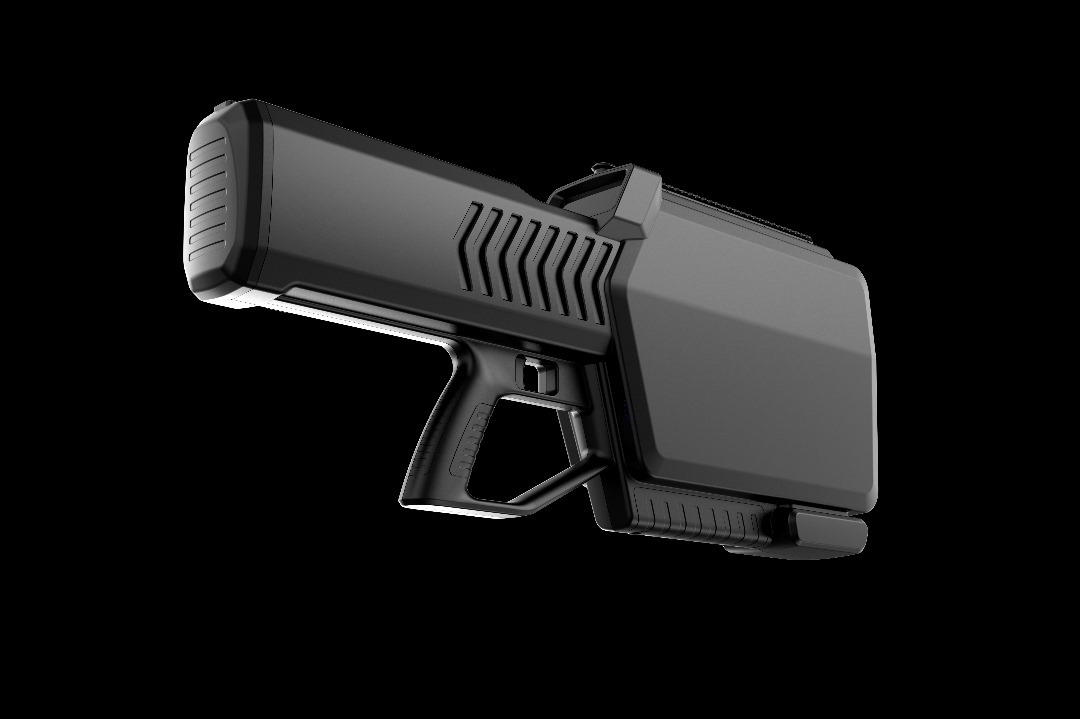

Czech Sokil SHH100 Anti-Drone Rifle with Scanner
The Czech Sokil SHH100 anti-drone rifle features an integrated scanner, frequency-range extender, and built-in detection and jamming capabilities for UAVs such as DJI and AUTEL. Designed for rapid deployment, the SHH100 combines detection and suppression in a single portable unit to neutralize hostile drones effectively.
Key Features
• Electronic jamming of control signals, video links, and GNSS signals across specified frequency bands
• Omnidirectional UAV detection in the 400 MHz to 6 GHz range, with an effective range of up to 3,000 m
• Direction finding in the 2.4 GHz and 5.8 GHz bands with accuracy up to 10°
• Up to 10 selectable channel combinations
Specifications
• Jamming Range: up to 3,500 m
• Frequency Range: 300–6000 MHz
• Output Power: 155 W
• Jamming Angle: 30° azimuth / 14° elevation
• Protection Rating: IP65
• Operating Time: up to 60 minutes
Operator Capabilities
• Manual frequency configuration within the 300–1100 MHz range
• Ability to direct a 75 W amplifier to a selected portion of the spectrum
Complete set
- Czech Sokil SHH100 anti-drone rifle with scanner × 1
-
Backpack with extension module for SHH100 × 1
-
External horizontally-polarized antenna for use with SHH100 extender × 1
-
Batteries × 4
-
Dual-battery charging base × 2
-
Power adapter (including DC cable) × 2
-
Power cable (AC mains cable) × 2
-
USB Type-C cable × 2
-
Shoulder strap × 1
-
Transport case for the SHH100 anti-drone rifle × 1
-
Transport case for the extension module × 1
-

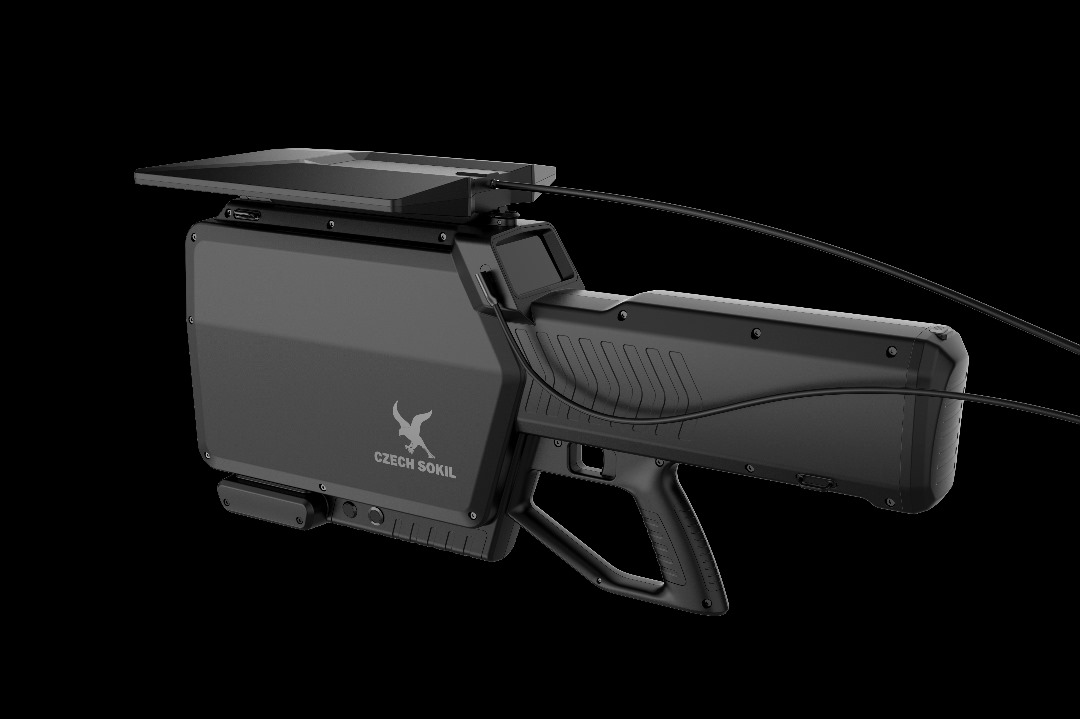

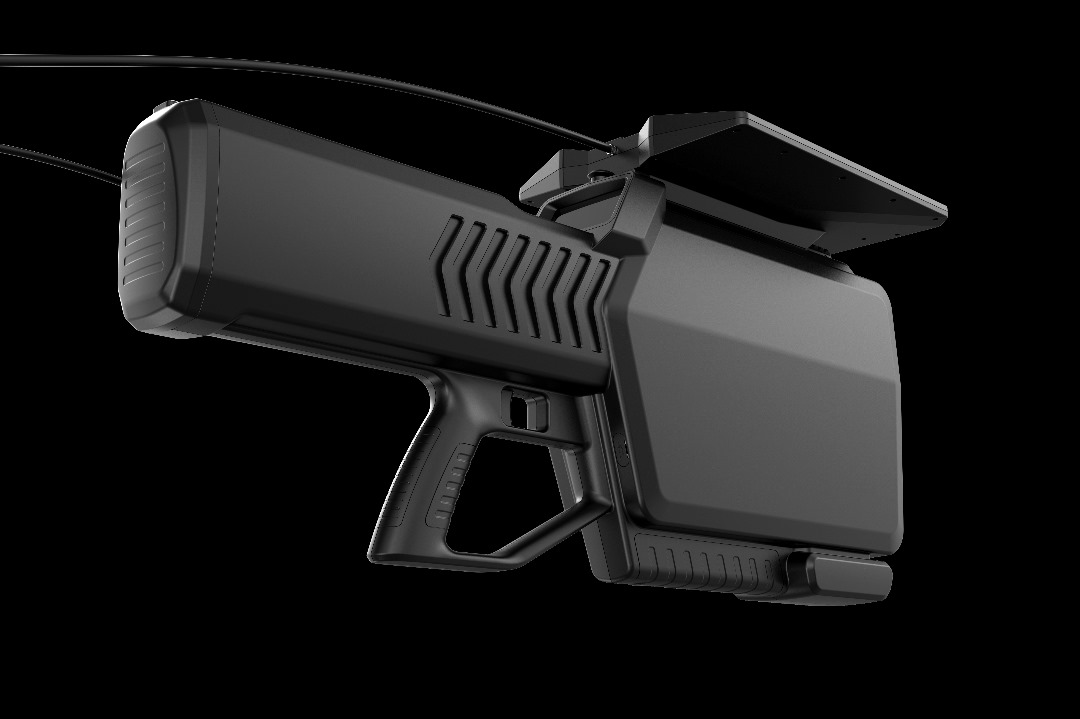

External FPV video interceptor screen with two 5.8 GHz antennas × 1
-
1.3 GHz receiver with antenna for the external FPV interceptor screen × 1
-
Power battery for the receiver and external FPV interceptor screen × 1
Screen Image Capture & FPV Intelligence
Using analog FPV video signals allows the system to capture reconnaissance imagery and verify jamming effectiveness — creating a closed loop of detection and suppression.
Detection Range
Omnidirectional, full-band detection achieves over 3 km range in open environments (with or without interference), enabling long-range identification of commercial UAVs.
Jamming Band & Method
The system uses digital base-signal generation technology, which lowers the required signal-to-noise ratio and disrupts remote-control links through an optimally configured interference waveform.
Direction Finding Capability
The integrated direction finder (bearing) can determine the azimuth of commercial drones with an accuracy error of no more than 10°.
Fault Management
After self-diagnostics, a fault icon appears on the SHH100 screen. The user can review the system log and send fault data to support for troubleshooting and resolution.
Key Functions
Detection & Alert
Detects FPV video links and remote-control channels of commercial drones. Detection range up to 2 km, with alert time up to 4 seconds. An integrated, regularly updated UAV database contains most commercial drone models.
Detection is performed by receiving radio signals within the Czech Sokil SHH100 coverage area. Detected UAV data are displayed on the SHH100 screen and an alarm notification is sent to the operator.
Intelligent Jamming
Based on the detected UAV frequency bands, jamming strategies are automatically configured. The system can generate jamming and interference signals simultaneously across multiple frequency bands to neutralize the target.

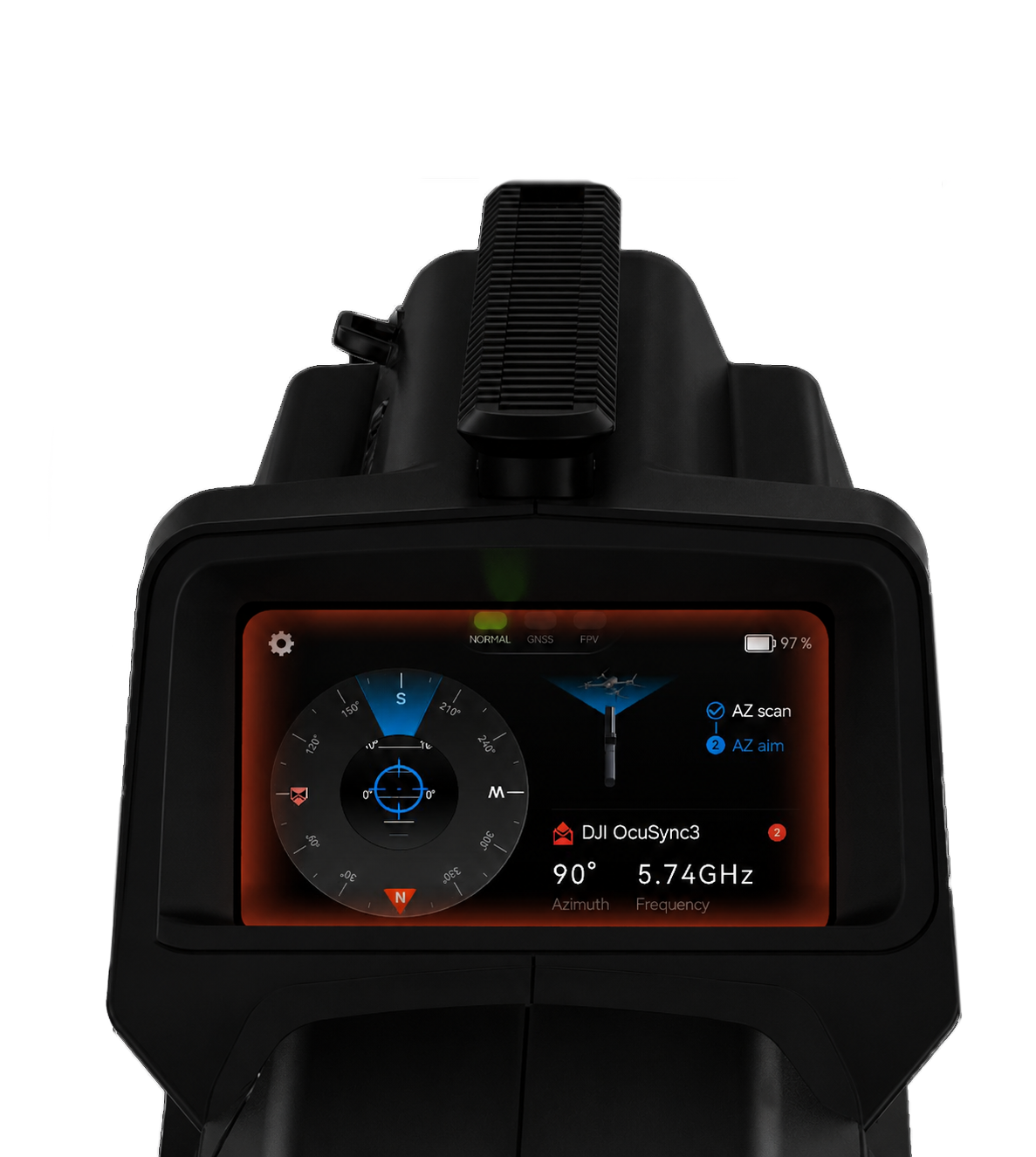

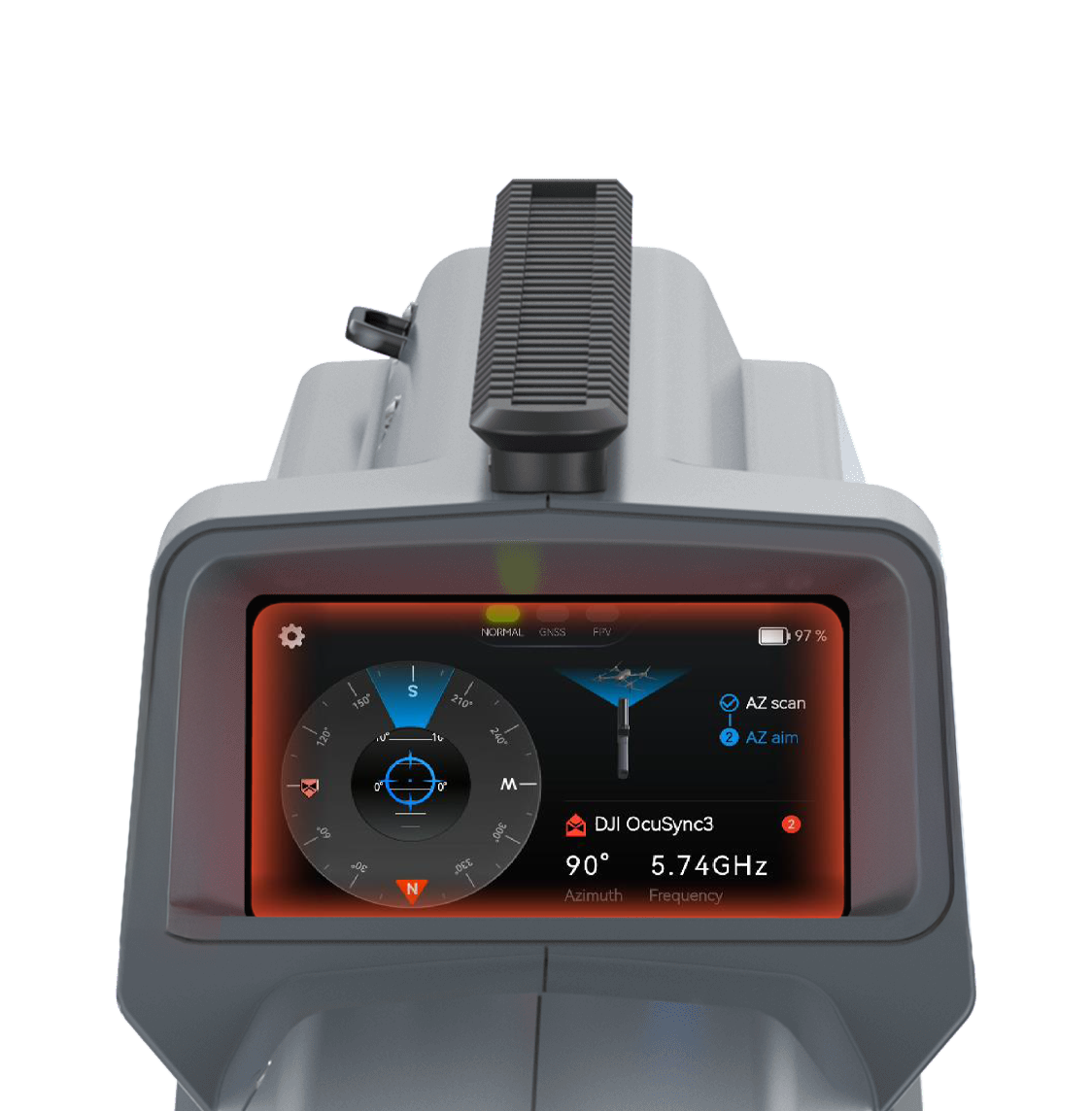

Positioning & Aiming
For positioning and aiming, the SHH100 includes a built-in GPS module, electronic compass and gyroscope. These sensors determine the unit’s orientation relative to magnetic north and allow the operator to align the SHH100 antennas toward the target.
Firmware & Software Updates
SHH100 supports a wired connection to a PC for firmware/software updates using the designated management software.
Log Reading & Diagnostics
The device supports wired PC connection for reading system logs, including operation logs and diagnostic/fault reports.
Screen Image Capture & FPV Intelligence
Using analog FPV video signals allows the system to capture reconnaissance imagery and verify jamming effectiveness — creating a closed loop of detection and suppression.
Detection Range
Omnidirectional, full-band detection achieves over 3 km range in open environments (with or without interference), enabling long-range identification of commercial UAVs.
Jamming Band & Method
The system uses digital base-signal generation technology, which lowers the required signal-to-noise ratio and disrupts remote-control links through an optimally configured interference waveform.
Direction Finding Capability
The integrated direction finder (bearing) can determine the azimuth of commercial drones with an accuracy error of no more than 10°.
Fault Management
After self-diagnostics, a fault icon appears on the SHH100 screen. The user can review the system log and send fault data to support for troubleshooting and resolution.
Key Functions
Detection & Alert
Detects FPV video links and remote-control channels of commercial drones. Detection range up to 2 km, with alert time up to 4 seconds. An integrated, regularly updated UAV database contains most commercial drone models.
Detection is performed by receiving radio signals within the Czech Sokil SHH100 coverage area. Detected UAV data are displayed on the SHH100 screen and an alarm notification is sent to the operator.
Intelligent Jamming
Based on the detected UAV frequency bands, jamming strategies are automatically configured. The system can generate jamming and interference signals simultaneously across multiple frequency bands to neutralize the target.
Positioning & Aiming
For positioning and aiming, the SHH100 includes a built-in GPS module, electronic compass and gyroscope. These sensors determine the unit’s orientation relative to magnetic north and allow the operator to align the SHH100 antennas toward the target.
Firmware & Software Updates
SHH100 supports a wired connection to a PC for firmware/software updates using the designated management software.
Log Reading & Diagnostics
The device supports wired PC connection for reading system logs, including operation logs and diagnostic/fault reports.
Weight: 6.6 kg
The device supports the use of a shoulder strap, allowing operators to carry it comfortably during activities such as patrol missions.
