Czech Sokil RTV01 Radar-Optical UAV Detection System

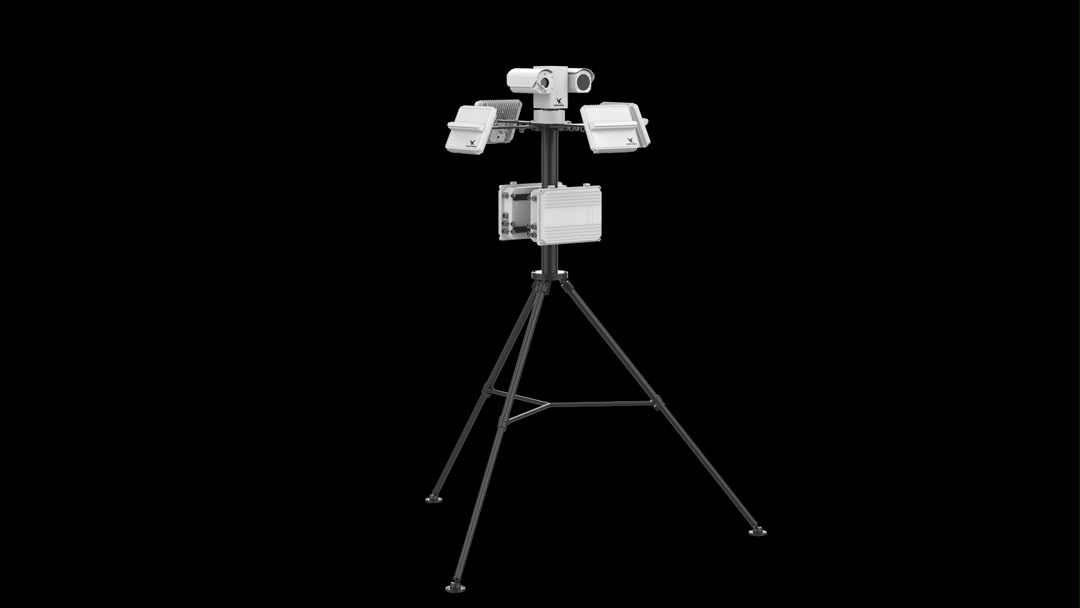

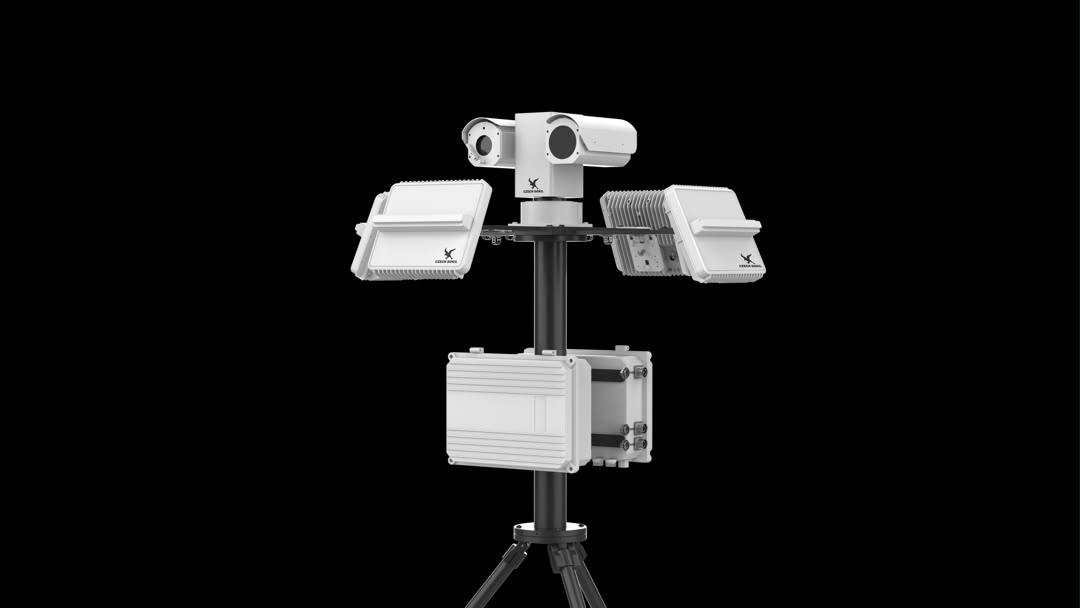

RTV01 is a compact radar-optical UAV detection system that provides continuous 360° airspace surveillance by combining a K-band phased-array radar with electro-optical and thermal imaging sensors.

Key Features

• Integrated radar-optical UAV detection system
• Detection, tracking, identification and visual confirmation of targets
• 360° airspace surveillance
• Detection of UAVs, vehicles, people and other objects
• Automatic target acquisition in less than 4 seconds
• AI-based UAV recognition with over 98% accuracy
• Daytime optical and thermal imaging surveillance channels
• Target data output for C-UAV integration
• Protection rating: IP66

Specifications

• System type: 2D phased-array radar + electro-optical/infrared module
• Radar frequency band: K-band, 24.05–24.25 GHz
• Detection range: FPV/DJI-class UAVs with RCS 0.01 m² — up to 1.2 km; vehicles up to 4 km
• Field of view: 360° azimuth / up to 90° elevation
• Number of tracked targets: 128+
• Daytime camera: Full HD 1920×1080, 48× optical zoom
• Thermal imaging channel: 640 × 512, uncooled LWIR sensor
• Maximum target speed: 50 m/s
• Operating temperature: -40°C to +60°C
• Weight: less than 30 kg
